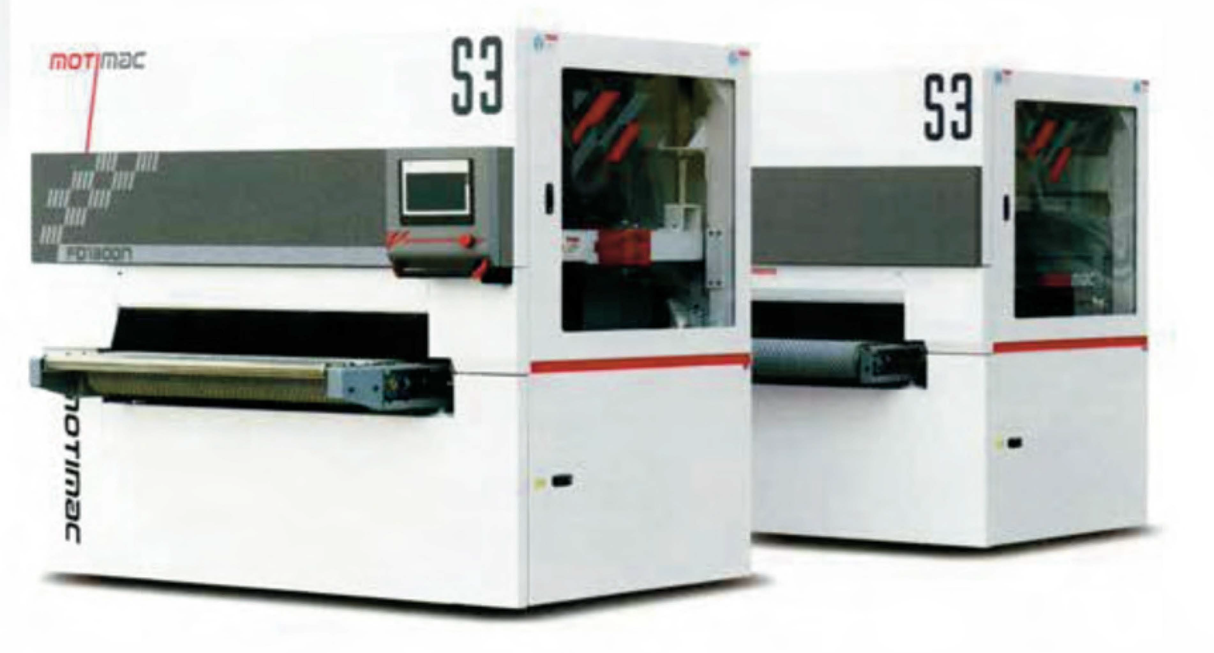

Sanding Brush Machine FR1300

$76,918.08

Our FR1300 51" wide linear sanding machine offers two straight sanding hubs. Perfect for molding, hardwood flooring, cabinet doors, and flat stock metals. Featuring a Siemens operating system with a digital touch screen for easy operation.

  • Excellent Structural Design
  • A Higher Caliber Configuration Improves Efficiency, All While Achieving the Perfect Surface Finishing
  • Flexible, Ground-Breaking, Compact, Customizable Brush Machine
  • The Essential Products for Automated Brush Sanding.
  • The Flexible Sanding System Which Can Be a Single Machine or Combination of All Three Machines.
  • Its Simplicity, Efficiency and Variety Provides More Possibilities with Greater Control Of The Sanding Process
  • The Correct Sanding Solution Available for Various Applications.
  • Easily Controlled Touch Screen.

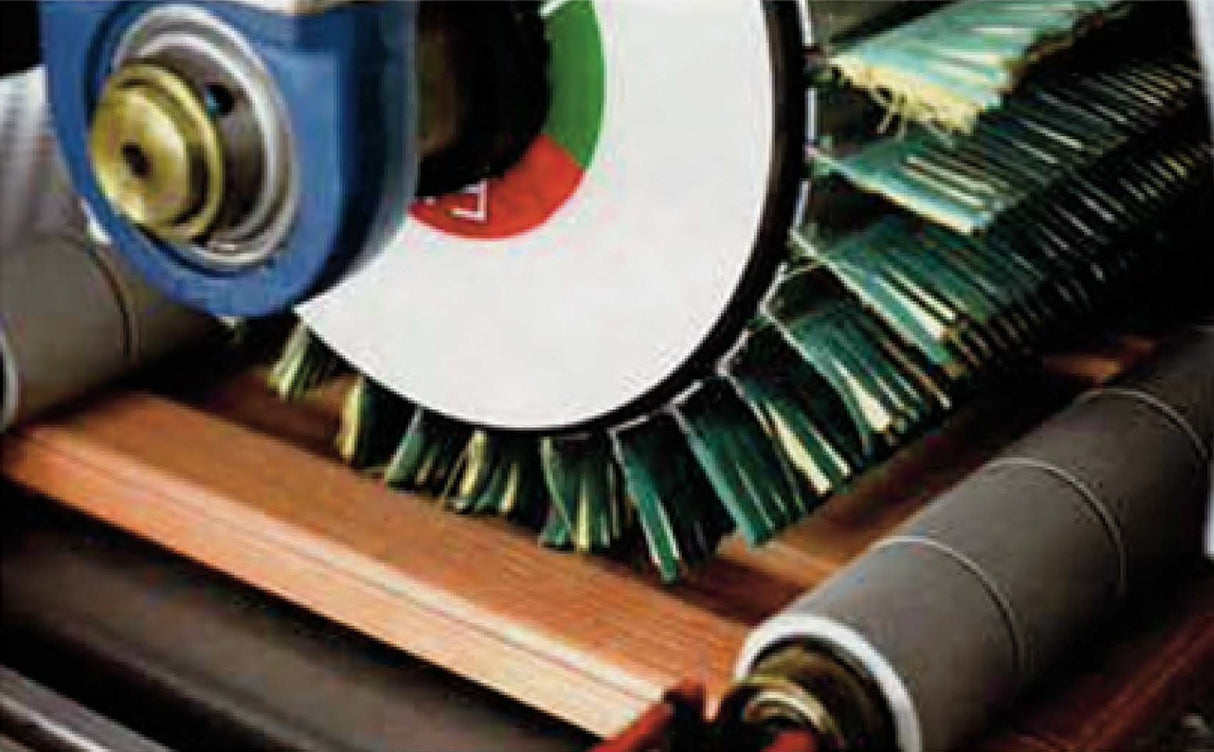

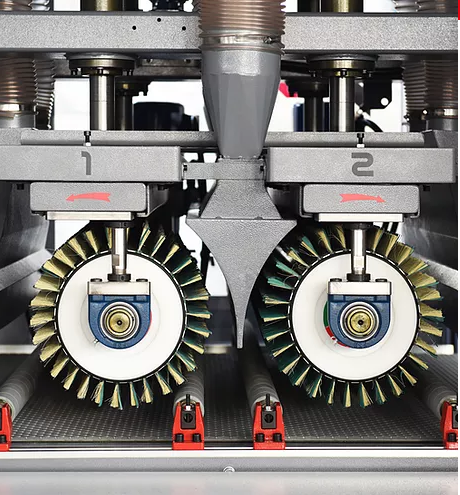

Two units of straight sanding heads rotate in opposite directions. Which provides complete sanding of flat and profiled pieces.



Specifications:

Max. Working Width: 51 in

Min. Working Length: 18 in.

Working Thickness: .11 - 4.5 in.

Total Motor Power: 8.3 kw

Linear Speed of Conveyor Belt: 10 - 55 ft./min

Volume of Dust Collection: 6100 m3/h

Overall Dimension: 89 in. x 76 in. x 83 in.

Total Weight: 4630 lbs



FOB Queensbury, NY - You will be contacted with a freight quote or you can arrange your own freight.
