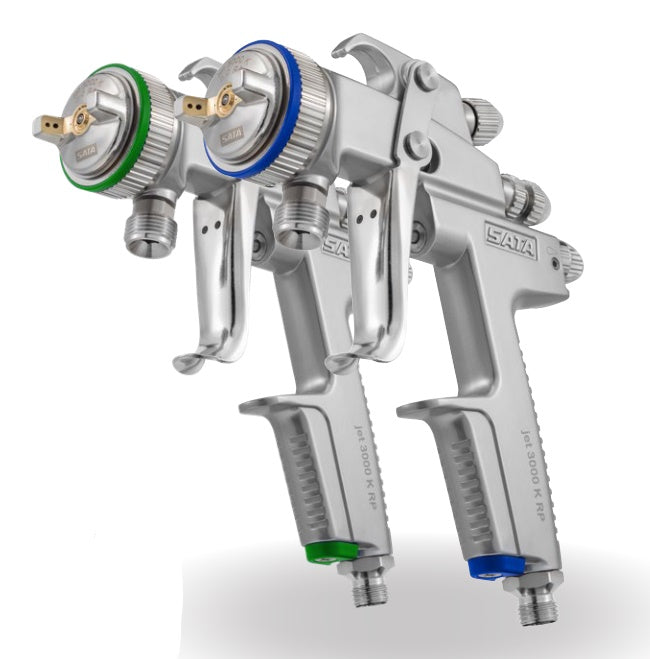

SATAjet 3000 K Spray Gun

SATAjet 3000 K

Manufacturer: SATA

Product Number: 933XX

Description: Use for high quality topcoat finishes in automotive, fleet or any industrial application. The SATAjet 3000 K HVLP and RP offers the finest atomization and a top-class finish and achieved by SATA technology, ensures transfer efficiencies considerably above 65 % required by VOC legislation. The patented air circulation principle provides an especially homogeneous and soft fan. The large fan and high material flow rates ensure swift work. Excellent ergonomics—the short gun body, extremely low weight and the optimum balance ensure the gun "fits like a glove." Suitable for water-borne materials—the paint needle and nozzle are made of stainless steel, and the nickel-plated gun body has been refined with a special coating. The durable air caps are made of brass (not of aluminum), therefore ensuring a long life time—a factor particularly important for industrial use.

Log In or Register to See Pricing

Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.

Product Benefits:

• Ideally suited for coating large areas

• Application of textured paints with air atomizing technology

• To be used in combination with paint pressure tanks or low pressure pump

• Round/flat spray control

• Material flow control

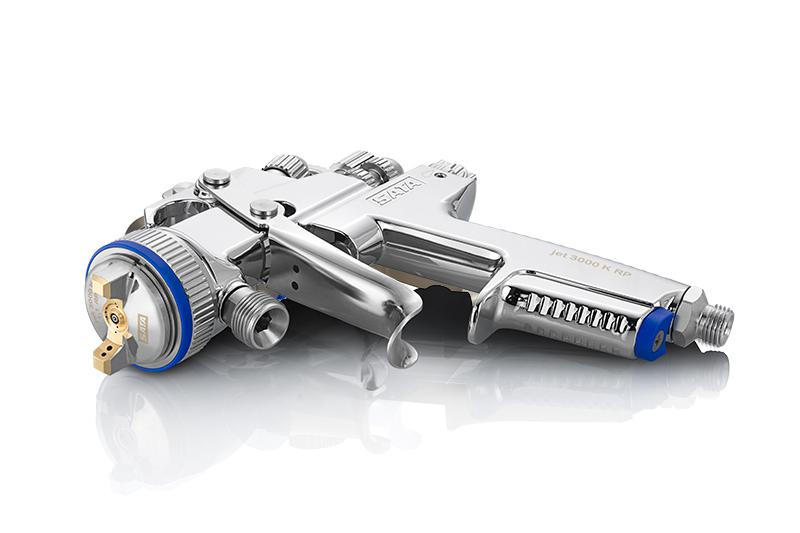

RP Technical Data

Inlet pressure: 6 psi–34 psi

Air consumption: 15.2 CFM @ 36 psi

Spray distance: 6 in–9 in

Material connection: G 3/8' male thread

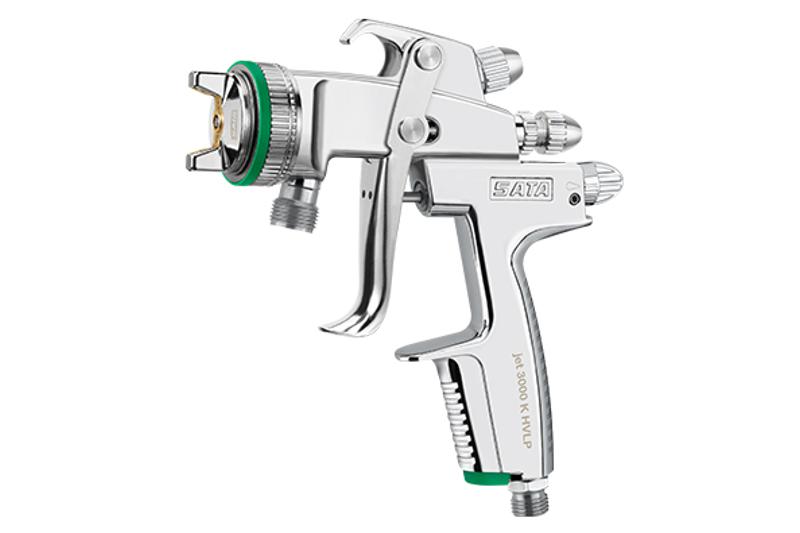

HVLP Technical Data

Inlet pressure: 36 psi

Air consumption: 18.7 CFM @ 36 psi

Spray distance: 5 in–8.5 in

Material connection: G 3/8' male thread

Accessory & Replacement Part List

RP Nozzle set

• 92494, 0.8

• 92502, 1.1

• 92510, 1.3

• 92528, 1.5
• 95422, 1.7
• 95356, 2.0

HVLP Nozzle Set

• 92783, 0.8

• 92791, 1.0


• 92809, 1.2

• 191379, 1.4


• 92817, 1.6


• 92825, 2.0


Specially Treated RP Nozzle Set

• 141317, 0.8


• 137901, 1.1


• 137919, 1.3


• 137927, 1.5


• 137935, 1.7


• 137943, 2.0

Specially Treated HVLP Nozzle Set

• 147058, 0.8


• 137950, 1.0


• 137968, 1.2


• CALL, 1.4


• 137976, 1.6
• 137984, 2.0

Required Accessories For SATA Pressure Fed Spray Guns

• SATA paint tube G 3/8" (female thread) - 3/8" (male thread) for SATA pressure fed spray gun—92031

• SATA paint strainer 60 msh, G 3/8" (female thread) and 3/8" (male thread) for SATA pressure fed spray gun except
  for SATAminijet—38265

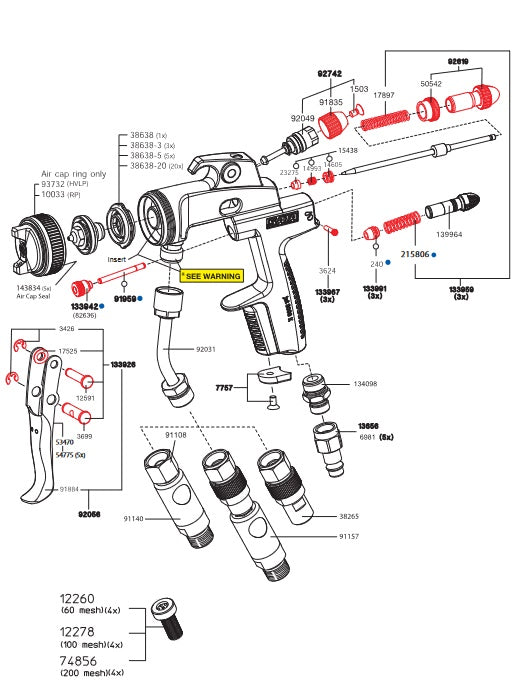

Spare Parts

• 240 Air Piston Packing


• 1503 Fan Control Screw

• 3426 Circlip only, 1 each


• 3624 Micrometer Pin


• 3699 Lower Trigger Pin
• 6981 Female Nipple (5 Pk)
• 7757 Color Code Disc (4 Pk)
• 10033 Air Cap Ring with Seal for 3000 K RP
• 12591 Upper Trigger Pin
• 13656 Hi-Flow Female Quick Coupling Nipple G 1/4
• 14605 Needle Packing Bushing
• 14985 Digital Battery Kit
• 14993 Needle Packing Spring

• 15438 Paint Needle Packing

• 17525 Lock Spring
• 23275 Needle Packing
• 38265 Strainer, G3/8i-G3/8a, 60 mesh WA
• 38638-3 Air Ring (3 Pk)
• 38638-5 Air Ring (5 Pk)
• 38638-20 Air Ring (20 Pk)
• 43638 Wire Air Ring Tool
• 50542 Fluid Control Lock Nut
• 53470 Trigger Slide Pad
• 53603 Air Micrometer
• 82636 Air Piston Packing Holder
• 91108 QC Nipple
• 91140 Material Coupling with Plug-In Nipple, G3/8i-G3/8a
• 91157 Material Coupling w/ Plug-In Nipple & Mat. Strainer 60 Mesh, G3/8i-G3/8a
• 91835 Fan Control Knob
• 91884 Trigger
• 91959 3000 K Air Piston
• 92031 Paint Pipe For SATA Pressure Fed G3/8i-G3/8a, Waterborne
• 92049 Fan Control
• 92056 Trigger Service Set
• 92577 3000 K Tool Set
• 92619 Fluid Control Service Set
• 92742 Fan Control Service Set
• 92759 Air Piston Service Set
• 92767 3000 K HVLP & RP Repair Kit (in red on the breakdown)
• 93732 3000 K HVLP Air Cap Ring with Seal
• 95091 Digital Air Inlet Fitting
• 133926 Trigger Sleeve Kit

• 133942 Seal retainer, cpl

  133959 Pressure spring (3 pieces) for paint needle and air piston

• 133967 Air Micrometer Pin (3 Pk)

• 133991 Packing for air piston (packing unit 3 pieces)

• 134098 Air Inlet Fitting, 1/4' BSP
• 143834 Air Cap Ring Seal (5 Pk)
• 183780 Seal Kit
• 215806 Air Piston Spring

Tool Kit—9050

• Extraction Tool


• Paint Strainer


• Cleaning Brush

• 2mm Allen Wrench


• 4mm Allen Wrench


• Universal Spanner

Repair Kit—92767

• 92759 Air Piston Service

• 183780 Sealing Kit

Adaptors

• Type S40 - 3M PPS Adapter
