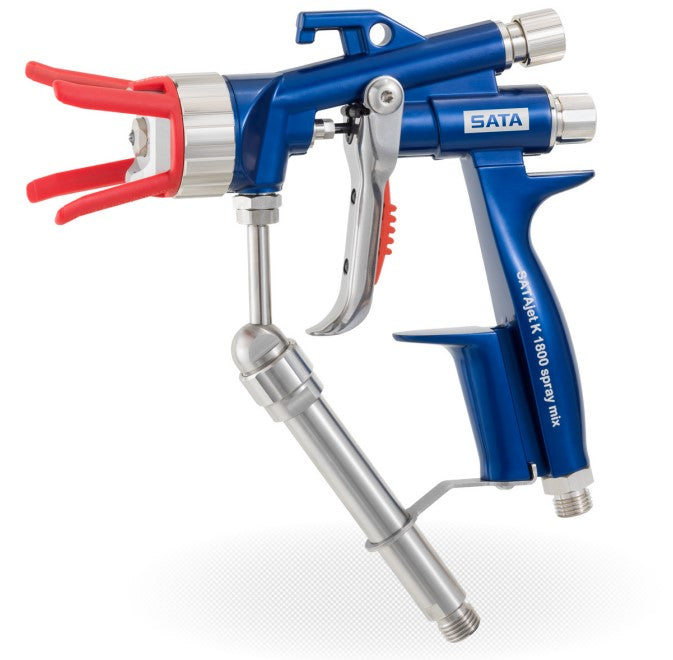

SATAjet K 1800 spray mix

$1,425.00

SATAjet K 1800 spray mix

Manufacturer: SATA
Part Number: 109XXXX, 1068023

Description: With the "spray mix technology," the paint material is applied at high pressure, creating a preformed airless spray fan. Through the air cap, compressed air is fed to this airless spray fan, which helps to shape it and enables an even droplet distribution. The result is a homogeneous material application for the highest surface quality.

The new lightweight gun in this spray gun class with its well-balanced gun body combines an optimized ergonomic design with a finely-tuned nozzle range and with the innovative clampLock paint needle system:


The ergonomic design in combination with the low trigger force of only 24 Nm enables fatigue-free working even during longer coating sessions.

Thanks to its light weight, the SATAjet K 1800 spray mix is perfect for continuous and time-intensive coating processes.

The innovative, two-part clampLock paint needle system enables easier maintenance.


The SATAjet K 1800 is an excellent tool for a wide range of applications in various sectors—from the woodworking and automotive industry, to machinery, steelwork, shipbuilding, and also container construction.


The new SATAjet K 1800 spray mix spray gun is perfectly suited for both classic craftsmanship as well as for industrial applications, i.e. for the coating of large surfaces and a wide range of components. Thanks to the various adjustment options and the finely tuned nozzle range, it is the perfect choice if it comes to high profitability, high area output and high finishing quality.



Log In or Register to See Pricing

Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.


Product Benefits:

  • Ergonomic design with a well-balanced gun body

  • Low spray gun weight

  • Single-axis trigger system for low trigger forces and fatigue-free working

  • Innovative, two-part clampLock paint needle system

  • Material connection system for the sieve or insert filter

  • Material connection G1/4 NPSM / air connection G1/4


Other features:


  • Ball-shaped tip of the paint needle, for perfect sealing

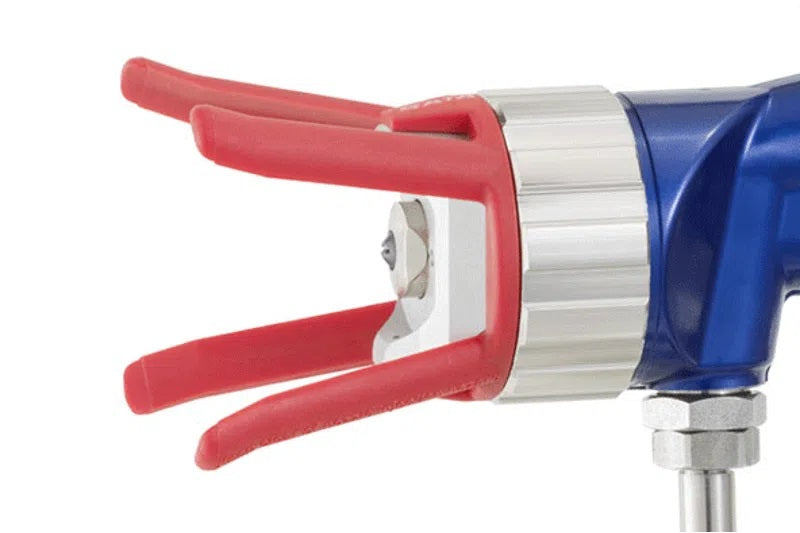

  • Pre-nozzle with tungsten carbide insert

  • Paint nozzle with nozzle core made of tungsten carbide

  • High surface quality at a pressure in the range of 725 – 3626 psi

  • Trigger with integrated trigger lock

  • Round/flat spray control

  • Application of water- and solvent-based paint systems

  • Easy to clean and corrosion-resistant anodized surface

  • Optional swivel joints for air and material connection




Technical Data


Recommended Air Inlet Pressure:

Variable

Recommended Spraying Distance:

7–10 Inches

Air Consumption:

4.2 CFM

Max. Material Inlet Pressure:

3626 PSi



The SATAjet K 1800 spray mix is available in three versions and with different nozzle sizes for your individual setup:


  • Basic Versionmaterial tube, filter and paint nozzle not included

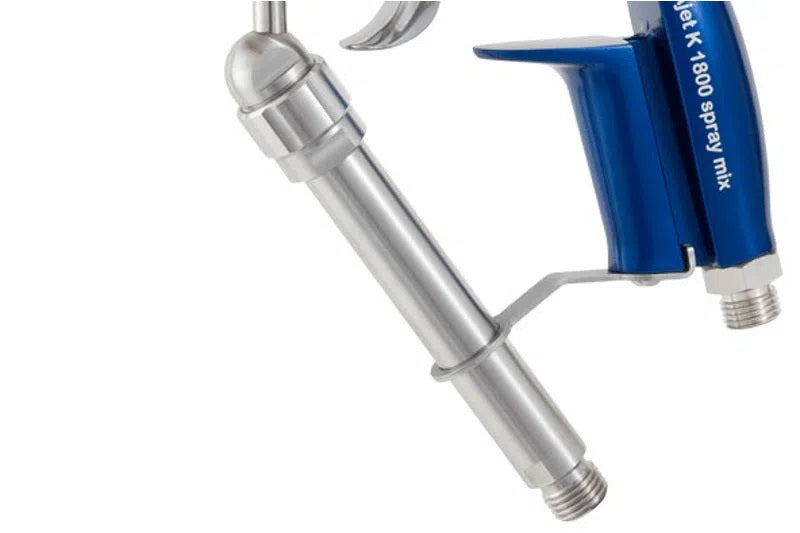

  • With Material Tube and A Short Filter (100 mesh), paint nozzle not included

  • With Material Tube and A Long Filter (100 mesh), paint nozzle not included


You can also retrofit a swivel joint for the material connection as well as for the air connection. This reduces the twisting of the connected hoses and makes the painting process easier.






Available Versions


1091454

SATAjet K 1800 spray mix With Long Material Tube & 100 Mesh Inline Filter, Without Paint Nozzle

1090076

SATAjet K 1800 spray mix With Short Material Tube & 100 Mesh Gap Filter, Without Paint Nozzle

1068023

SATAjet K 1800 spray mix Without Material Tube, Filter, Or Paint Nozzle

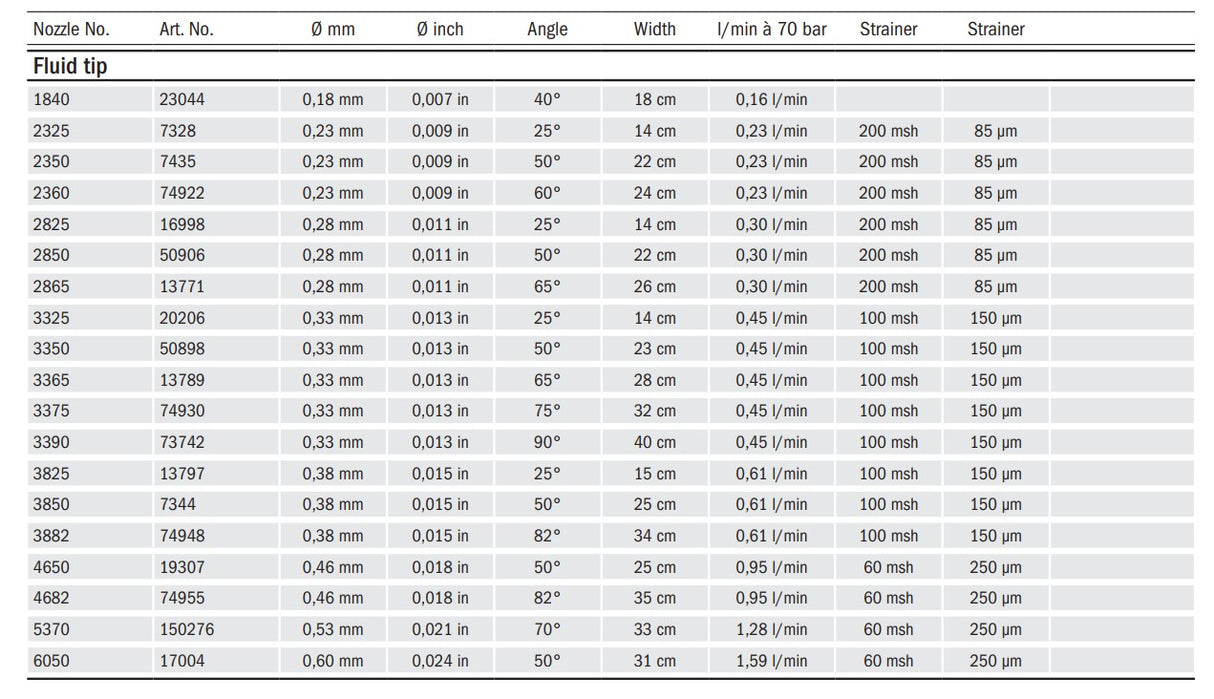

SATAjet K 1800 spray mix Nozzles


Nozzle No.

Part No.

° mm

° Inch

Angle

Width

L/min@70bar

Strainer

Strainer

1840

23044

0.18mm

0.007 in

40 °

18 cm

0.16 l/m



2325

7328

0.23mm

0.009 in

25 °

14 cm

0.23 l/m

200 mesh

85 μm

2350

7435

0.23mm

0.009 in

50 °

22 cm

0.23 l/m

200 mesh

85 μm

2360

74922

0.23mm

0.009 in

60 °

24 cm

0.23 l/m

200 mesh

85 μm

2825

16998

0.28mm

0.011 in

25 °

14 cm

0.30 l/m

200 mesh

85 μm

2850

50906

0.28mm

0.011 in

50 °

22 cm

0.30 l/m

200 mesh

85 μm

2865

13771

0.28mm

0.011 in

65 °

26 cm

0.30 l/m

200 mesh

85 μm

3325

20206

0.33mm

0.013 in

25 °

14 cm

0.45 l/m

100 mesh

150 μm

3350

50898

0.33mm

0.013 in

50 °

23 cm

0.45 l/m

100 mesh

150 μm

3365

13789

0.33mm

0.013 in

65 °

28 cm

0.45 l/m

100 mesh

150 μm

3375

74930

0.33mm

0.013 in

75 °

32 cm

0.45 l/m

100 mesh

150 μm

3390

73742

0.33mm

0.013 in

90 °

40 cm

0.45 l/m

100 mesh

150 μm

3825

13797

0.38mm

0.015 in

25 °

15 cm

0.61 l/m

100 mesh

150 μm

3850

7344

0.38mm

0.015 in

50 °

25 cm

0.61 l/m

100 mesh

150 μm

3882

74948

0.38mm

0.015 in

82 °

34 cm

0.61 l/m

100 mesh

150 μm

4650

19307

0.46mm

0.018 in

50 °

25 cm

0.95 l/m

60 mesh

250 μm

4682

74955

0.46mm

0.018 in

82 °

35 cm

0.95 l/m

60 mesh

250 μm

5370

150276

0.53mm

0.021 in

70 °

33 cm

1.28 l/m

60 mesh

250 μm

6050

17004

0.60mm

0.024 in

50 °

31 cm

1.59 l/m

60 mesh

250 μm

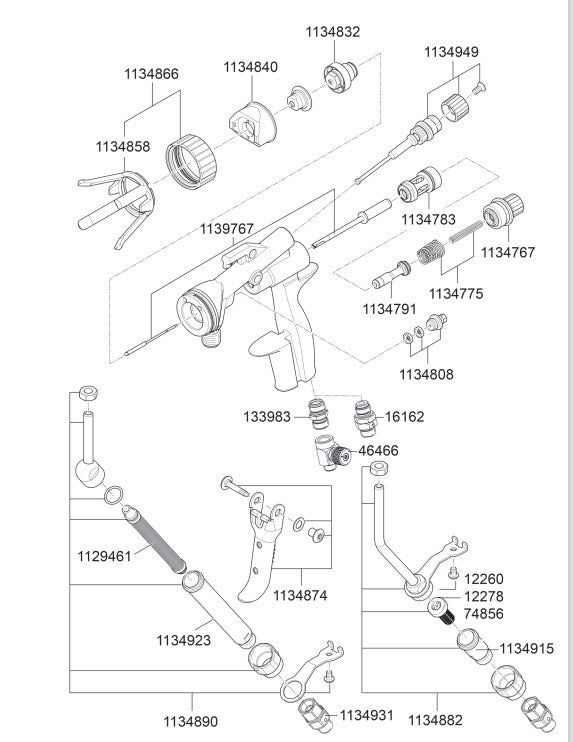

Spare Parts


  • 1129461 Yellow Plug-In 100 Mesh Filter (10 Pcs)

  • 1134767 Locking Screw cpl With Sealing Washer

  • 1134775 Spare Spring Set (1 Each Air Piston And Paint Needle Spring)

  • 1134783 Air Piston Sleeve

  • 1134791 Air Piston

  • 1134808 Packing Screw Incl. 2 Pcs Paint Needle Packing

  • 1134832 Pre-Nozzle cpl

  • 1134840 Air Cap cpl

  • 1134858 Protection Against Accidental Contact

  • 1134866 Air Cap Ring cpl

  • 1134874 Trigger cpl

  • 1134882 Short Material Connection For Wedge Wire Screen Without Material Filter Housing

  • 1134890 Long Material Connection For Inline Filter Without Material Filter Housing

  • 1134915 Short Material Filter Housing For Wedge Wire Screen

  • 1134923 Long Material Filter Housing For Inline Filter

  • 1134931 Material Swivel Joint

  • 1134949 Round/Flat Spray Fan Control cpl

  • 1139767 Paint Needle cpl (Paint Needle & Paint Needle Rod)

  • 12260 60 Mesh Sieve (4 Pcs)

  • 12278 100 Mesh Sieve (4 Pcs)

  • 133983 Air Connection Piece ¼” Male Thread

  • 16162 Swivel Joint

  • 74856 Strainer Kit: 200 Mesh Sieve (4 Pcs), Strainer Holder (2 Pcs), Screw (1 Pc)


Repair Kit


  • 1112854 Nozzle Cleaning Kit
