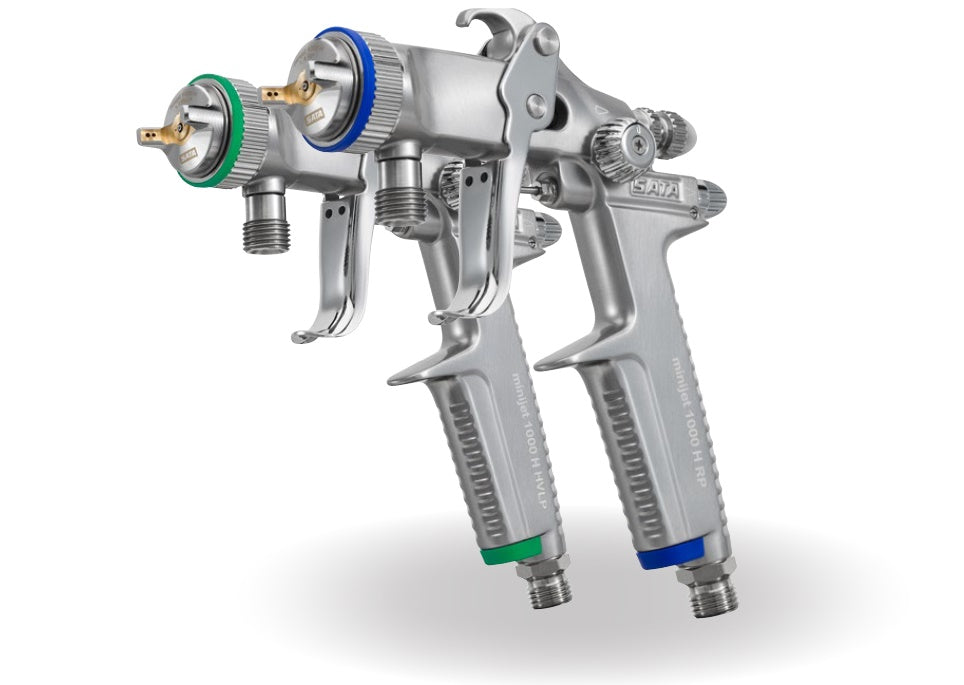

SATAminijet 1000 H Spray Gun

$679.00


SATAminijet 1000 H

Manufacturer: SATA
Part Number: 187682, 191502

Description:  Hand-held spray guns for high volume or continuous coating of small parts need to meet many specific requirements. Small parts often have a complex geometry that require a small, ergonomic, and highly flexible spray gun. Matching these requirements with excellent atomization and wide ranging spray pattern size has allowed the minijet 1000 H to meet these needs.


Log In or Register to See Pricing

Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.


Product Benefits:

  • Small, Ergonomic, and Compact

  • Extremely Fine and Uniform Atomization

  • Infinitely Adjustable Round/Flat Fan Control

  • High Flexibility

RP Technical Data

Inlet Air Pressure: 36 PSI

Air Consumption At 36 PSI: 7 CFM

Spray Distance: 6–8 in.

Material Connection: ¼ in. Male Thread


HVLP Technical Data

Inlet Air Pressure: 29 PSI

Air Consumption At 29 PSI: 4.1 CFM

Spray Distance: 4–6 in.

Material Connection: ¼ in. Male Thread


Required Accessories

  • 1883182 RPS Adapter No. 17 With QCC Connection Thread G1/4 To Use For RPS Siphon Cup*

  • 188482 RPS Siphon Kit—Pins, Suction Hose, Sieve For 0.3L Cup (25 Pk)

  • 188516 RPS Siphon Kit—Pins, Suction Hose, Sieve For 0.3L Cup (50 Pk)

  • 188490 RPS Siphon Kit—Pins, Suction Hose, Sieve For 0.6L Cup (25 Pk)

  • 188524 RPS Siphon Kit—Pins, Suction Hose, Sieve For 0.6L Cup (50 Pk)
  • 188508 RPS Siphon Kit—Pins, Suction Hose, Sieve For 0.9L Cup (25 Pk)
  • 188532 RPS Siphon Kit—Pins, Suction Hose, Sieve For 0.9L Cup (50 Pk)

RPS Siphon Cup System, H Guns Only


RP Nozzle Sets


HVLP Nozzle Set

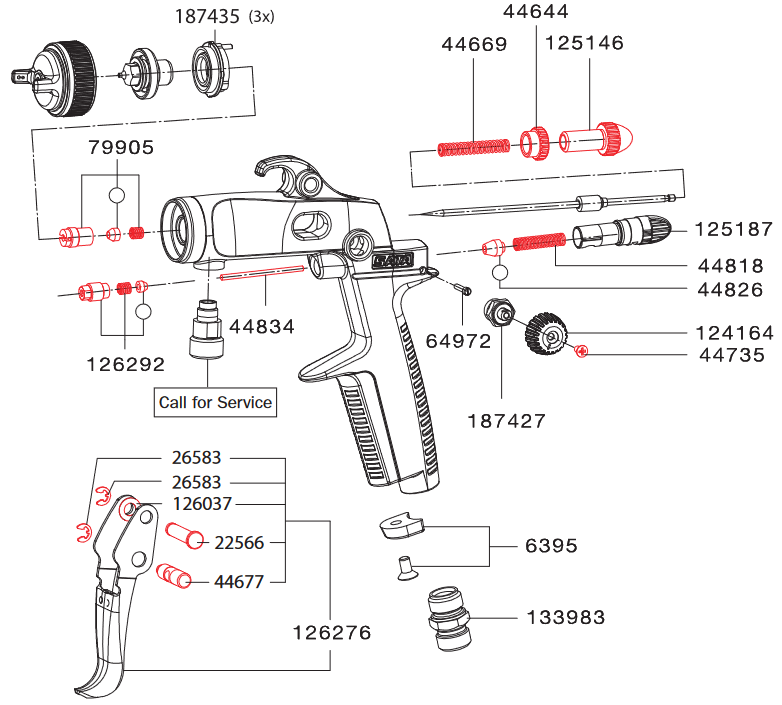

Spare Parts & Accessories

  • 6395 Color Code Discs (4 Pk)

  • 22566 Upper Trigger Pin*

  • 26583 Circlip

  • 44644 Lock Nut

  • 44669 Needle Spring

  • 44677 Lower Trigger Pin

  • 44735 Fan Control Screw

  • 44818 Air Piston Spring

  • 44826 Air Piston Packing

  • 44834 Air Piston

  • 44842 Needle Packing Bushing

  • 44859 Needle Packing

  • 50658 minijet Packing Set

  • 62810 Piston Packing*

  • 68809 Needle Packing Spring

  • 79905 Needle Packing Service set

  • 124164 Fan Control knob

  • 125112 Air Cap Ring

  • 125146 Fluid Control Knob

  • 125187 Air Micrometer*

  • 125377 Air Piston Bushing

  • 125492 Trigger*

  • 125856 Tool Set

  • 126037 Tension Spring Washer

  • 126276 Trigger Service Set

  • 187427 Fan Control

  • 187435 Air Distribution Ring (3 Pk)


Tool Kit125856

  • Universal Spanner

  • Cleaning Brush

  • Extraction Tool

  • Wrench


Repair Kit—126284
