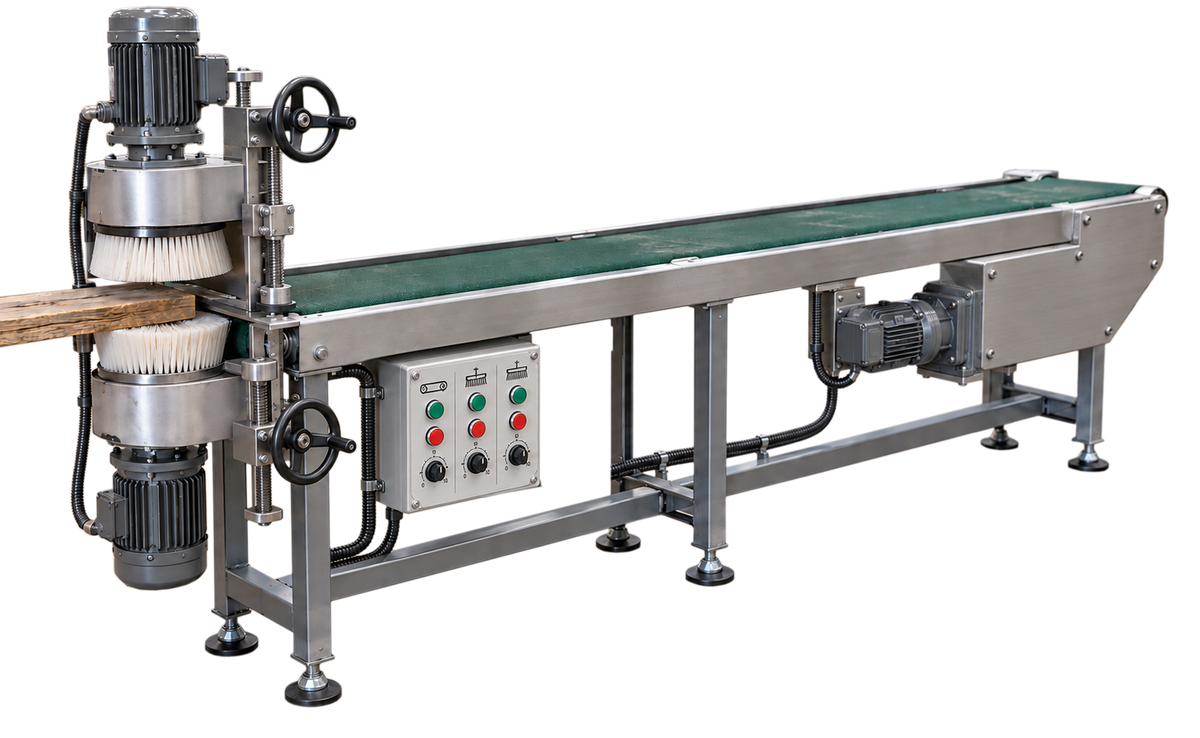

Total Finishing — Total DeDuster™

Clean Boards. Better Coating. Smoother Production.

Manufacturer: Total Finishing

Part Number: TOTALDEDUSTER

Description: The TOTAL DEDUSTER™ prepares rough-lumber for finishing by removing loose debris immediately before the boards enter a flow coater. Two independently controlled 12-inch nylon cup brushes clean the top and bottom surfaces, helping reduce contamination and promote more consistent coating results.

Built for straightforward operation and precise adjustment, the TOTAL DEDUSTER™ gives operators independent control over the conveyor and both brush heads.

Key Features:

• Dual 12-inch nylon cup brushes clean the top and bottom surfaces of each board

• Independent brush motors allow each brush head to operate separately

• Independent variable-speed control for the upper brush, lower brush, and conveyor

• Handwheel height adjustment allows each brush head to be positioned for different board thicknesses and surface profiles

• 8-foot-long × 12-inch-wide conveyor provides stable, controlled material feeding

• Dedicated conveyor drive motor mounted beneath the conveyor

• Three independent start/stop stations — one each for the conveyor, upper brush, and lower brush

• Three variable-speed controllers provide precise control of conveyor speed and brush action

• Dust-collection hood included to help capture debris displaced during cleaning
• 230 V, three-phase electrical service

• Heavy-duty fabricated steel frame with adjustable leveling feet

• Ideally suited for installation ahead of a Sarmax Apache flood coater or a similar finishing system

The TOTAL DEDUSTER™ provides a simple, purpose-built solution for cleaning rough lumber before coating—helping operators feed cleaner material into the finishing process while maintaining control over brush pressure, brush speed, and line speed.

You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery.
