Ultratech Ultra-Hard Top Plus Models Extender Kit (With or Without Drain Option)

Ultratech Ultra-Hard Top Plus Models Extender Kit (With or Without Drain Option)

Manufacturer: UltraTech

Part Number: 9658 and 9659

Product Notes: Optional extender kits (Part# 9658 Without Drain & 9659 With Drain) provide for the addition of another compartment. (1 tank per extender kit).

The extender kits are used to expand your current system so that you can store more drums.  When you order a kit, you will receive a spill pallet, a black connecting wall, as well as two sets of roll-top doors and swing out doors.

This unit comes unassembled. It is used to add on to any 8,12,16,20, etc… existing assembly.

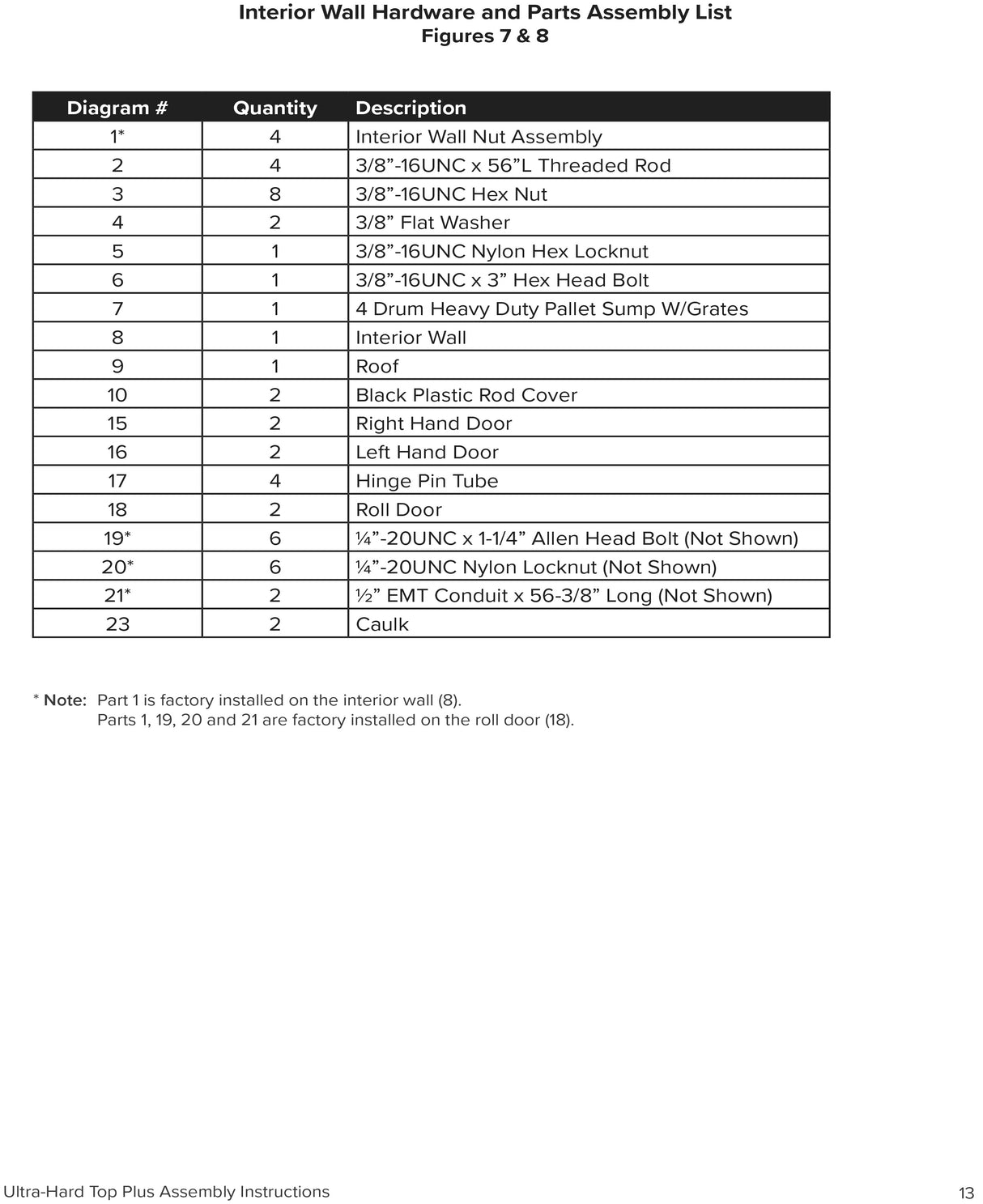

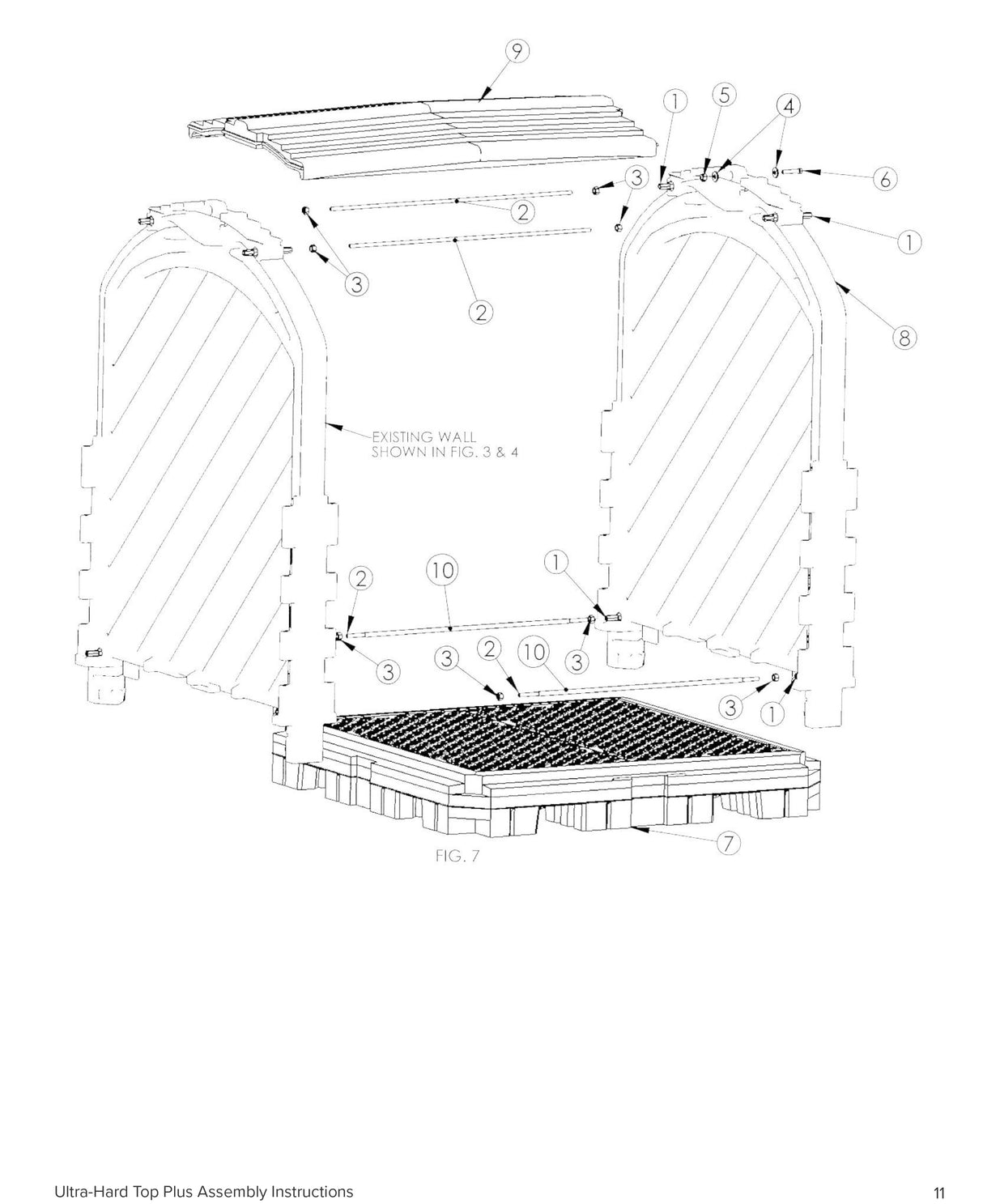

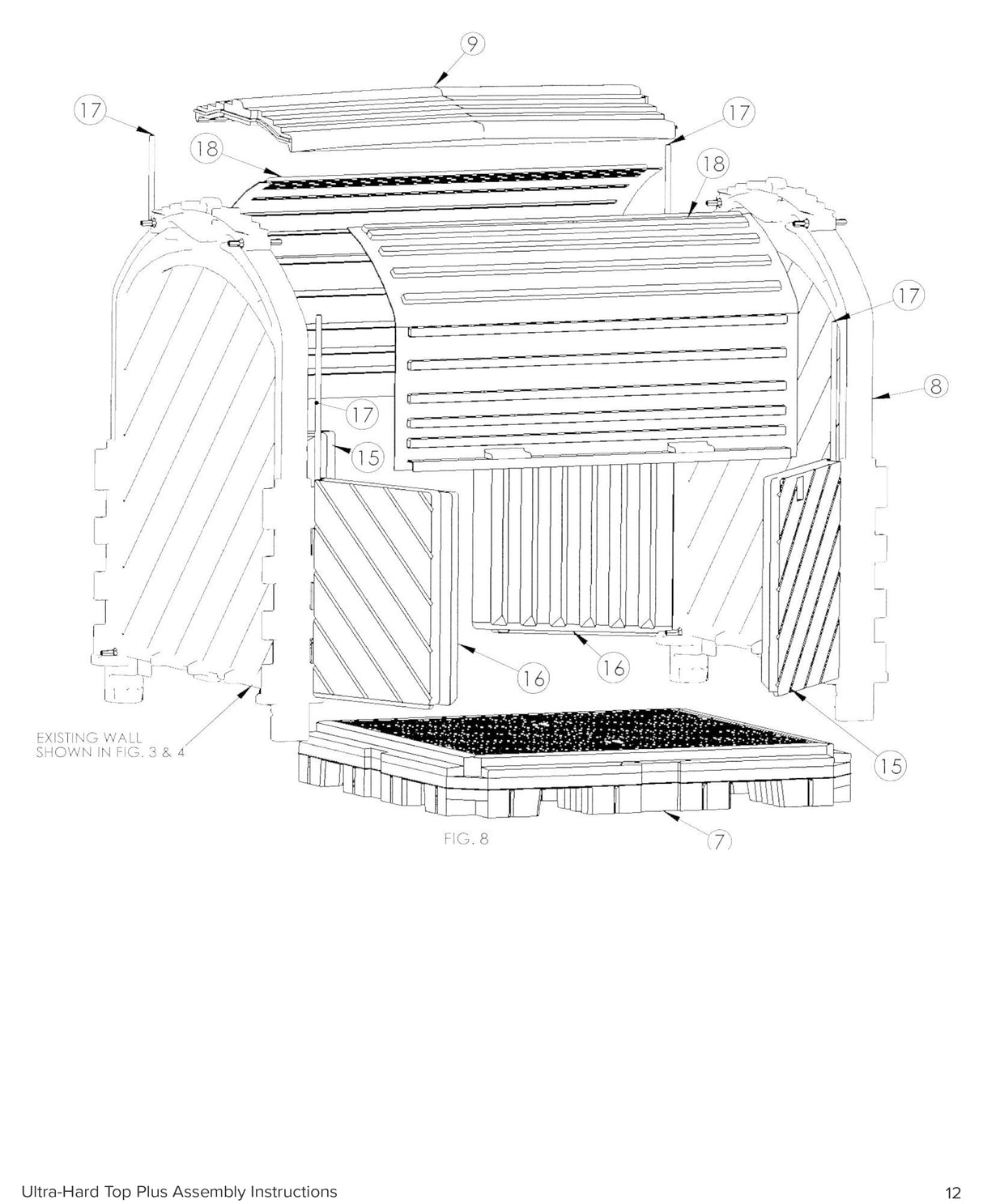

+ Please refer to the Figure 7 & 8 and parts list on Pages 11-12.Follow the assembly instructions starting with

1) Step 1 on page 14 if assembling an Add-on Roll Top Hardcover to an existing unit that has already been fully assembled.

*Note: Requires some disassembling first to add on.

2) Step 5 on page 18 if adding an Add on Roll Top Hardcover to a unit that has an interior wall exposed.
