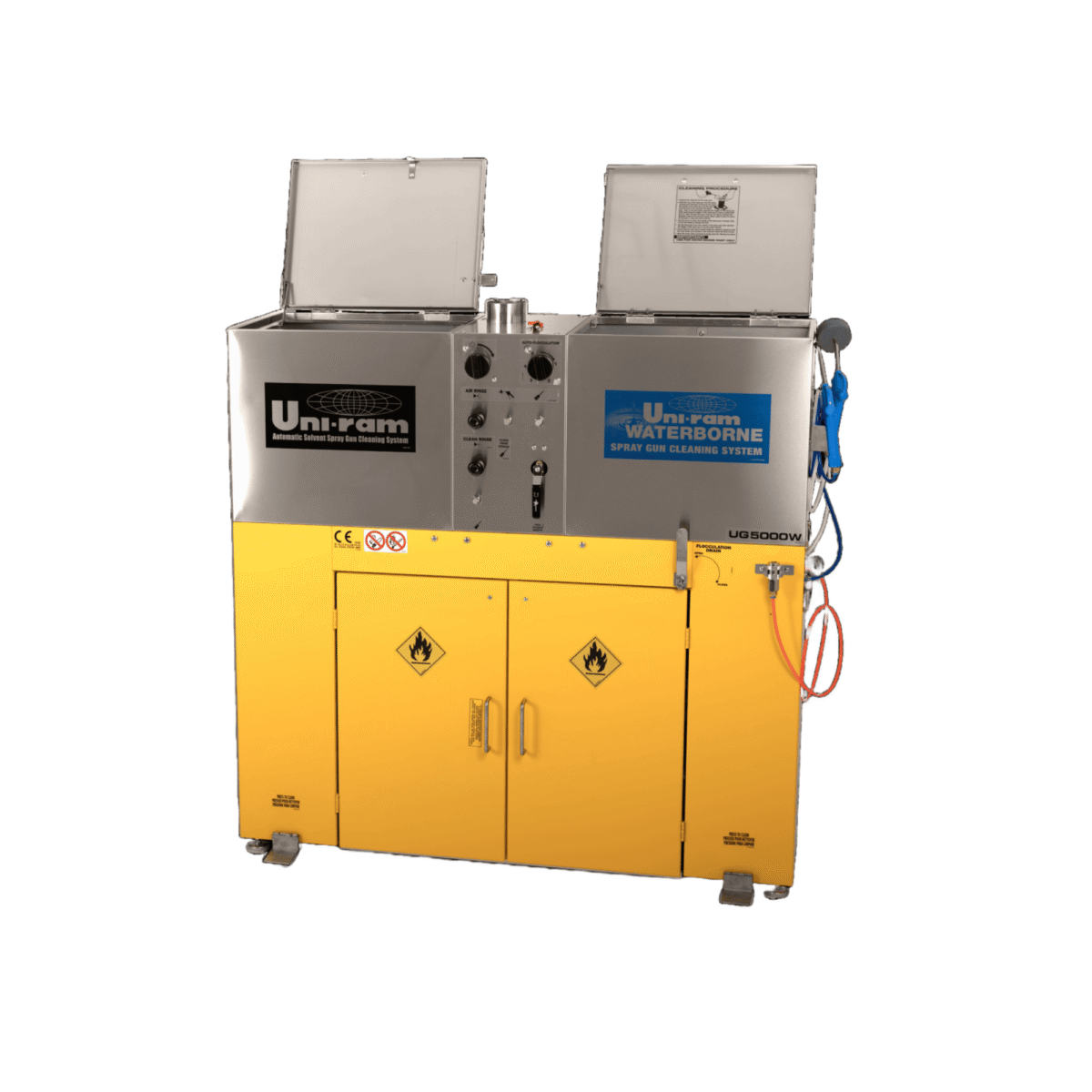

UG5000W Spray Gun Washer
Manufacturer: Uni-Ram
Part Numbers: UG5000W, UG5000AW & UG5000EW
Description: This unit combines a Spray Gun Cleaner for solvent-based paints on one side (left) and a Spray Gun Cleaner for water borne paints on the other (right) side.
The left (solvent) side has automatic wash, air flush, solvent rinse, fume venting with on/off control, manual wash with Flow-through Brush, manual rinse with a spigot and a stainless steel tank and lid. Two spray guns can be cleaned at the same time. The right, water, side is used to manually clean and rinse one spray gun at a time in a stainless steel tank. The used water can be reclaimed. The unit comes with 2 closed-top high density plastic pail for washing and rinsing, already installed on the left side and and an open-top plastic pail with filters on the right side, also installed.
You will be contacted with a freight quote for shipping
Automatic Solventborne Spray Gun Cleaning:
- 14 L (3.7 gal) of wash solvent is pumped through 14 jets to flush the fluid passage and exterior of 2 spray guns in under 1 minute. A final rinse of
100 cc of clean solvent and air flush completes automatic cleaning. - Automatic Cleaning is faster than cleaning by hand, allowing more cars to be painted each day.
- Automatic Cleaning provides a consistent result as opposed to cleaning by hand.
- Additional manual cleaning, when required, is provided by a flow-through brush. Solvent flow is activated by a foot pedal.
- Automatic cleaning greatly reduces the Painter's exposure to solvent for a healthier environment. Spray guns are cleaned with solvent in an enclosed tank; the operation is "Hands Free". The vent automatically extracts
fumes when the lid is raised. If the lid is accidently raised during cleaning, the operation stops, to prevent solvent exposure. - Wash solvent is reused until dirty, reducing solvent consumption, a "Green" approach. Wash solvent can also be recycled in a Uni-ram solvent recycler
then reused.
Automatic Solventborne Features:
• Top loading; cleans 2 guns.
• Automatic cleaning cycle consists of wash, clean rinse and air flush.
• Powered by Uni-ram's dual diaphragm pump, 12 L per minute (3.7 gal per minute) capacity.
• The air plug (see photo below) with air flow prevents solvent from entering the air passage of the spray gun during cleaning.
• Cleaning tank and delivery tubes are constructed from 304 grade stainless steel for long
life.
Manual Waterborne Spray Gun Cleaning:
- Waterborne spray guns are cleaned effectively with 3 cleaning tools.
- Wash gun delivers high pressure water to flush the fluid passage in under 15 seconds. (See photo on back page)
- Flow-through brush removes paint from the outside of the spray gun.
- Air gun dries the spray gun.
- The cleaning power of water is enhanced by the addition of AQUA-KLEEN, Uni-ram's cleaner.
- The used water can be recovered and reused reducing waste water consumption and disposal costs, it is a "Green" approach.
Manual Waterborne Features:
• Stainless steel cleaning tank for long life.
• Wash gun and brush are powered by Uni-ram's 5 cm (2") dual diaphragm pump. "Green" Water Recovery System
• The used water is treated with Uni-ram's flocculating agent, COAG-KLEEN FP granules, then filtered. COAG-KLEEN FP causes the waste paint to clump at the surface of the water. The filter captures the waste paint, allowing the clean water to pass to the capture bucket.
• Used water can be reclaimed up to 8 times reducing consumption and disposal costs, it is a "Green" approach
UG5000W Common Features:
• CE Approved.
• Complete with pressure regulator. Minimum air
pressure is 6 bar (85 psi).
• Dimensions: 119 cm w x 43 cm d x 117 cm h
Dimensions: 47" w x 17" d x 46" h
Weight: 77 kg (170 lb)
*CAUTION*
RIGHT TANK FOR WATER BORNE PAINTS ONLY
NOT DESIGNED FOR USE WITH SOLVENT BASED PAINT
