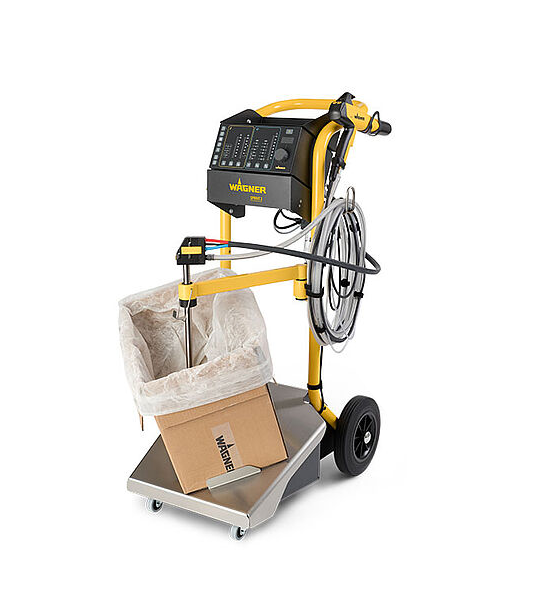

Wagner Sprint 2 Manual Powder Coating Unit - Box Feed
Manufacturer: Wagner
Part #: 2466208
Description: Sprint 2 is the new generation of Wagner's manual powder coating unit: The update combines proven elements from the previous product family with new, innovative components and assistance functions that offer even more options. For excellent manual coating results. The manual unit is available in two versions - for powder feeding directly from the original box or alternatively from a 60-liter hopper. Conversions between the two variants are possible.
Excellent coating performance - High application efficiency with the PEM-X1 manual gun, intuitive control with WACON Sprint 2 XE, optimum powder preparation, reproducible results with consistently high quality.
Achieve perfect results quickly & easily - New components and assistance functions such as the Quick-Link injector and the Digital Surface Optimizer increase the efficiency and quality of coating and color changes.
The right solution for every application - Various configuration options, sets and accessories offer flexible solutions for every application in manual coating.
Time savings during cleaning & color change
New functions save the coater a lot of time: With the coupling of the new Quick-Link injector, all powder and air hoses can be detached with one hand. The integrated scraper ring in the swivel arm wipes the powder off the outside of the lance without the need for an additional work step, which also speeds up the cleaning and color change process. As the injector and suction lance are firmly screwed together, fewer interfaces need to be cleaned manually.
Proven gun with legendary performance
The PEM-X1 manual gun impresses with its unbeatably high application efficiency. There are three characteristic curves to choose from, enabling optimum electrostatic powder charging even with different powder properties. As a lightweight powder gun, it is also very robust and therefore ideal for time-intensive coating work. The coater can quickly adjust the powder quantity using integrated buttons and change the recipe with a double-click on the trigger.
Specifications:
| Weight | 95lbs |
| Shipping Dimensions | 47” x 15.5” x 21.5” |
Includes 1 year limited warranty for cart and gun. Warranty does not cover hoses and cables or their connections.
Sprint 2 Expert Parts and Accessories:
Replacement Parts -
| Ref. No. | Part No. | Description |
| 1 | 2322587 | PEM-X1 manual gun |
| 2 | 2466676 | Powder hose set, d10-5.5 m POE |
| 3 | 2355337 | Shaker motor 230V/50Hz ET |
| 4 | - | Sprint 2 mobile base |
| 5 | 2466049 | Swivel arm set |
| 6 | 2466079 | Quick-Link powder injector |
| 7 | 2466207 | Hose set |
| - | 130215 | Grounding cable, 10 m; 32.81 ft |
| - | 264626 | Mains Cable (USA) |
Accessories -
| Part No. | Description |
| 2322868 | CoronaStar PEM-X1 / PER-X1 assy |
| 265911 | Gun Switchbox for Corona / Tribo guns |
| 351794 | Powder hose D9 |
| 2310699 | Powder hose D10 |
| 2307502 | Powder hose D11 |
| 2310700 | Powder hose D12 |
| 265266 | Powder hose set d11-5m |
| 2466872 | Spare part box manual unit Sprint 2 |
| 351019 | Manual gun PEM-T3 (Tribo) |
PEM-X1 Parts and Accessories:
| Part No. | Description | |
| 2321976 | Flat jet nozzle, X1, complete |  |
| 2321981 | Deflector cone, D18, complete |  |
| 2321980 | Deflector cone, D25, complete | |
| 2321171 | Deflector cone, D34, complete | |
| 2322529 | Electrode holder, X1 F ET (Flat) |  |
| 2322490 | Electrode holder, X1 R ET (Round) |  |
| 2387104 | Set of flat jet nozzles, X1 F5 |  |
| 2390036 | Flat jet nozzle, X1 F5-X |  |
| 2322761 | Hose take-up, D10-D12, complete |  |
| 2322768 | Hose take-up, D8-D10, complete | |
| 2322868 | CoronaStar, PEM-X1, complete |  |
| 2324124 | Wedge tool, X1 + 20 wedges |  |
Nozzle Extensions:
| Part No. | Description |
| 2323366 | Nozzle extension, X1 VL 150 (150 mm; 5.91 inches) |
| 2323356 | Nozzle extension, X1 VL 300 (300 mm; 11.81 inches) |
| 2323338 | Nozzle extension, X1 VL 500 (500 mm; 19.68 inches) |
| 2324147 | Flat jet nozzle, X1 VL EXT |
| 2324148 | Round jet nozzle, X1 VL EXT |
