Ball, 1" (Lower)
Manufacturer: Binks
Part Number: 20-4963
Description: Ball, 1" (Lower)

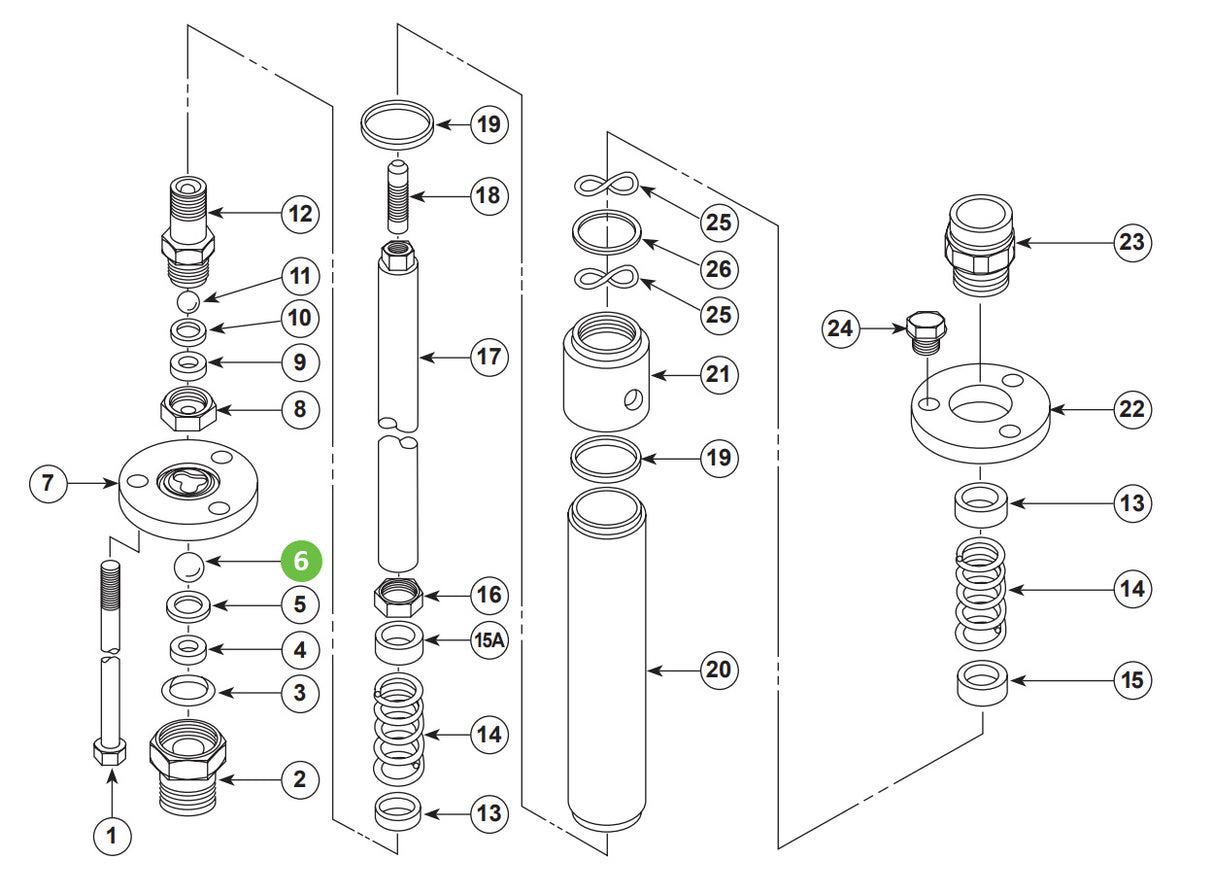

| Item No. | Part No. | Description | Qty |
| 1 |
41-1556 |
TIE BOLT (Lower) | 3 |
| 2 | 41-2084 | FOOT VALVE | 1 |
| 3 | 20-4173* | “O” RING (Lower) | 1 |
| 4 | 101-1939* | SEAT-SHAPE EDGE (Lower) | 1 |
| 5 | 41-1524* | SEAT GASKET (Lower) | 1 |
| 6 | 20-4963* | 1" BALL (Lower) | 1 |
| 7 | 41-1562 | FOOT VALVE BODY | 1 |
| 8 | 41-10254 | RETAINER NUT | 1 |
| 9 | 101-1940* | SEAT-SHAPE EDGE (Upper) | 1 |
| 10 | 101-1147* | GASKET (Upper) | 1 |
| 11 | 20-3250* | 3/4" BALL (Upper) | 1 |
| 12 | 41-10266 | FLUID PISTON | 1 |
| 13 | 41-10265* | FEMALE ADAPTER | 2 |
| 14 | 41-1242* | “V” RING | 10 |
| 15 | 41-1251* | MALE ADAPTER (1/8" Length) | 1 |
| 15A | 41-10264* | MALE ADAPTER (1/4" Length) | 1 |
| 16 | 41-10258 | LOCKNUT | 1 |
| 17 | 101-1781 | PUMP SHAFT (Hard Chrome) | 1 |
| 18 | 41-10253 | STUD | 1 |
| 19 | 41-2168* | GASKET (Cylinder) | 2 |
| 20 | 101-1780 | CYLINDER (Hard Chrome) | 1 |
| 21 | 41-11023 | OUTLET | 1 |
| 22 | 41-1542 | RING | 1 |
| 23 | 101-1619 | UPPER PACKING NUT | 1 |
| 24 | 41-1563 | SPACER NUT | 3 |
| 25 | 41-11027* | WAVE SPRING | 2 |
| 26 | 41-11031* | WASHER | 1 |
Literature:
