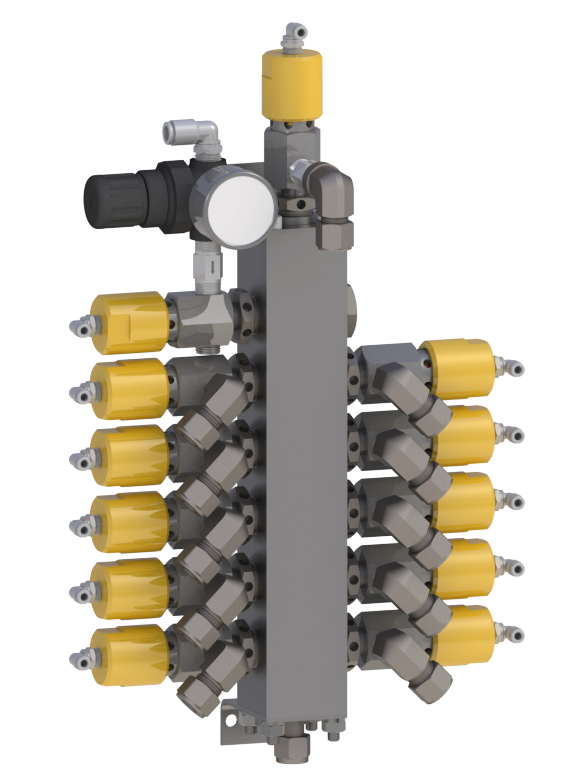

CCV-5100 Low Pressure Color Change Valve Stack Assembly
Manufacturer: Carlisle Ransburg
Part #: CCV-51XX-XXX
Description: Low pressure color change valve stack assembly. Select desired number of color valves. Refer to manual for expanded view of color stack. Air push valves, check valves, and fluid inlet fittings can be purchased separately and are listed in the 2nd table below.
All orders come with the following components (ITEMS 4, 7, 12, 16, AND 20 QUANTITIES WILL VARY WITH SELECTION):
| Item No. | Part No. | Description |
| 1 | CCV-17-SS | MANIFOLD BLOCK, INLET |
| 2 | CCV-16-SS | MANIFOLD BLOCK, CENTER |
| 3 | CCV-18-SS | MANIFOLD BLOCK, OUTLET |
| 4 | CCV-503-SS | COLOR VALVE ASSEMBLY |
| 5 | CCV-37 | BRACKET (x2) |
| 6 | SS-10022 | CAP SCREW (x4) |
| 7 | SSF-6504 | THREADED ROD (CUT TO SIZE) (x4) |
| 8 | SS-655-ZN | HEX NUT (x4) |
| 9 | SS-1505-CD | LOCKWASHER (x4) |
| 10 | SSP-1421 | PIPE PLUG (INCLUDED WITH VALVE ASSEMBLIES) |
| 12 | SSP-6427 | MALE, SWIVEL ELBOW |
| 16 | 23165-430 | O-RING |
| 19 | LSFI0033-00 | CONNECTOR, 3/8” ODT X 3/8” AN, SS |
| 20 | KK-4370 | PLUG KIT |
| 25 | CCV-7 | VALVE TOOL |
Purchased Separately:
| Item No. | Part No. | Description |
| 11 | 79309-0X | AIR PUSH ASSEMBLY |
| 15 | SSV-809 | CHECK VALVE |
| 18 | SSP-6443 | FEMALE ELBOW |
| 23 | SSP-6812 | FEMALE TEE |
| 21 | SSP-6810 | MALE TEE |
| 22 | SSP-6435 | MALE ELBOW |
