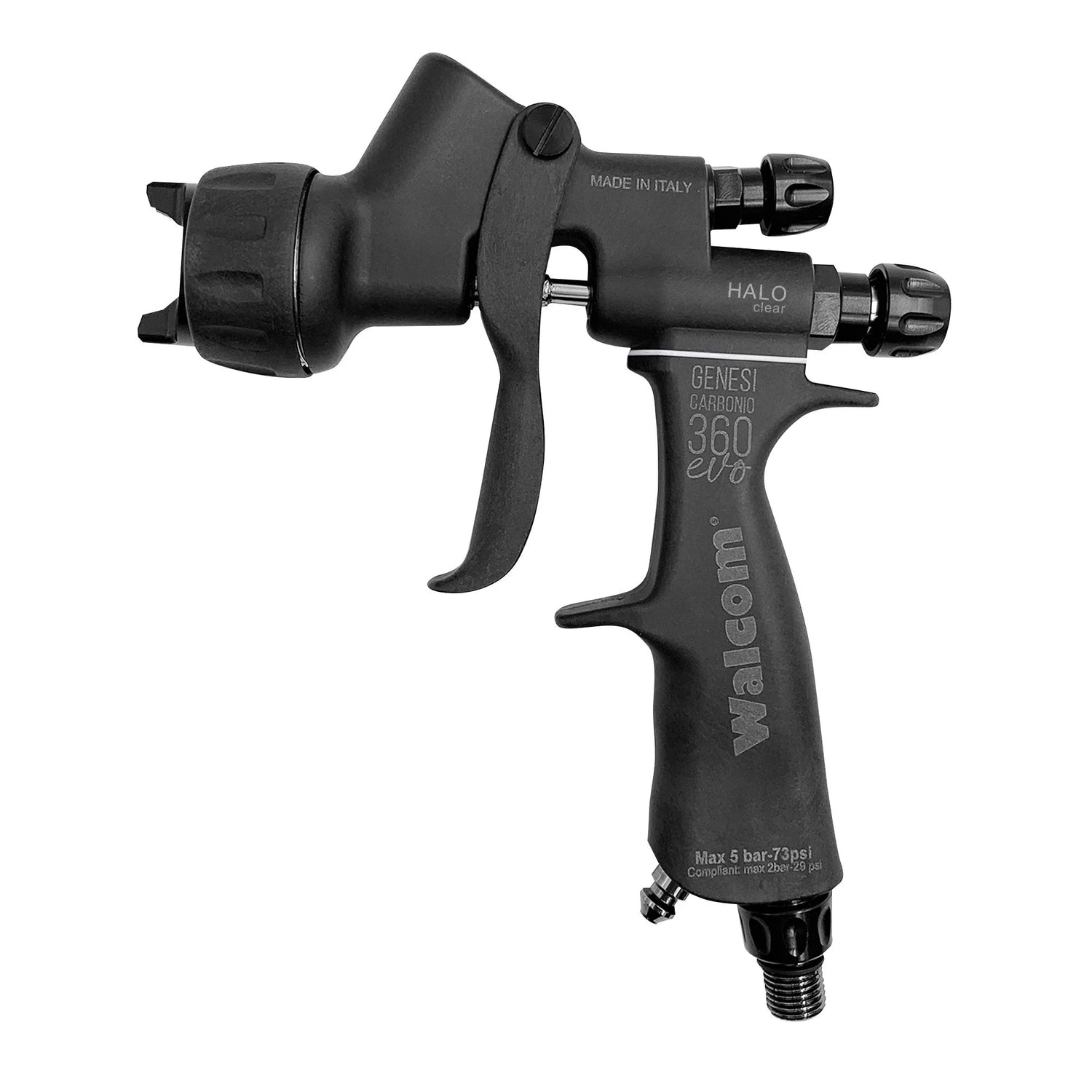

Walcom Genesi Carbonio 360 EVO HTE Gravity Spray Gun Clear


Genesi Carbonio 360 EVO HTE Clear

Manufacturer: Walcom

Part #: 01XXXX

Description: Ideal for solvent and waterborne materials.

Genesi Carbonio 360 Evo is the evolution of the 360 light model, with an integrated air regulator on the air inlet and a digital pressure gauge connected directly to the spray gun body, it's even lighter and easier to handle, ergonomics and comfort are combined with superlative performance. Genesi Carbonio 360 Evo does not require the use of protective plugs for the spray gun washer unlike the competition, just close the air inlet and it is immediately ready for washing. The specific base air cap with proper distribution and flow orientation, 12 holes nozzle, precise and wide range of adjustment for fan and paint flow, are details that makes it a unique piece of equipment in the refinish application of the latest generation products.

HTE high transfer efficiency is an atomization system that combines a higher pressure than the standard hvlp with an equivalent or even higher transfer efficiency, making application easier and faster.

Genesi HTE has been tested by UDRI laboratories and compliant as per California SCQAMD certification.


  • Body: forged aluminium and carbon fiber
  • Handle and trigger: carbon fiber
  • Air cap: anodized aluminium
  • Air cap ring: carbon fiber
  • Nozzle: stainless steel AISI 303
  • Needle: stainless steel AISI 303
  • Seal gaskets: self-lubricating and adjustable PTFE (Teflon)
  • Weight: 340 g
  • Operating air pressure: range 0.5 - 2.5 bar / compliant max 2 bar
  • Air consumption: 380 l/min at 2 bar

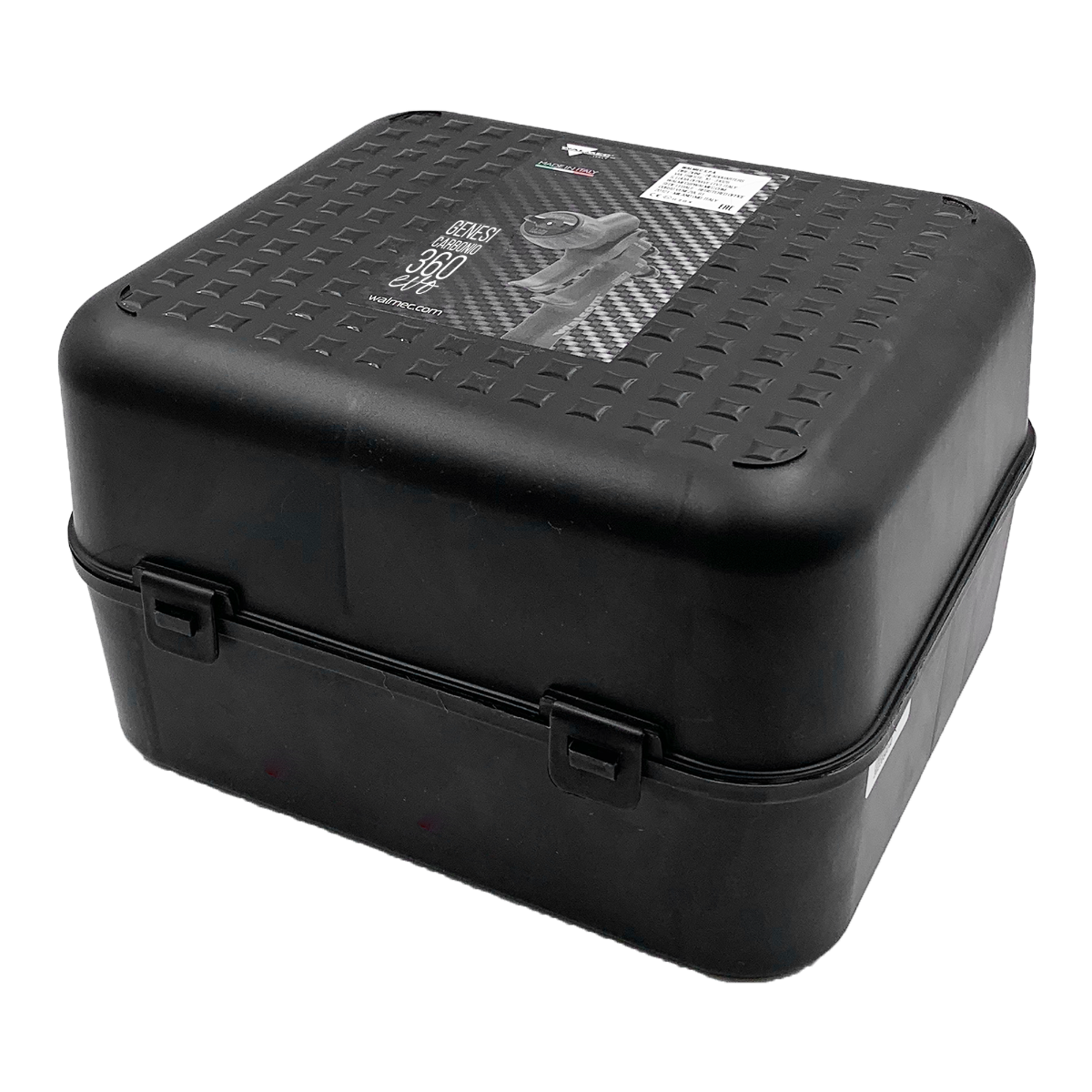

All models come with internal regulator, rebuild kit, wrench and plastic carrying case. Options include your choice of nozzle size, cup, and digital gauge.

Parts and Accessories:

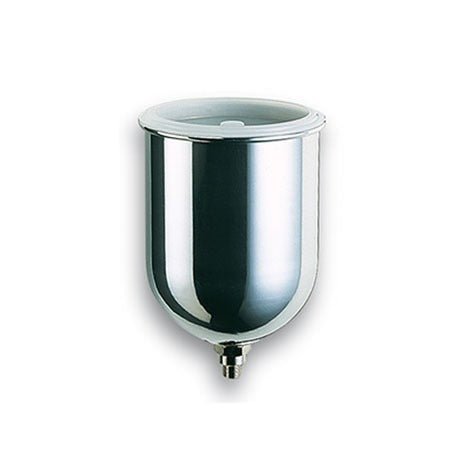

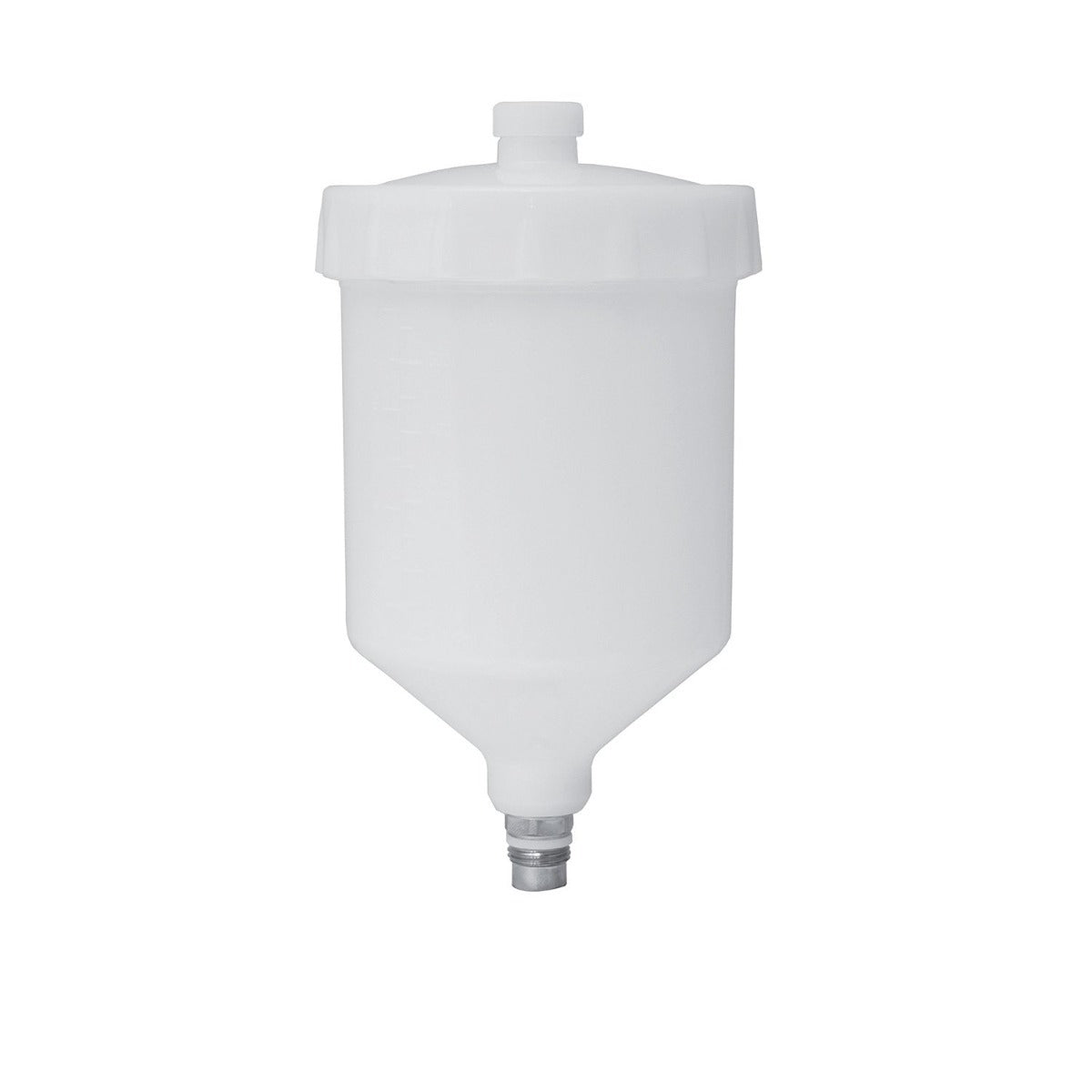

Gravity Cups:
